This anti-bedsore electric nursing bed is not only a medical device, but also a digital extension of the nursing process. Through mechanical innovation, it reduces the risk of hospital-acquired infections; with intelligent control, it enhances the efficiency of medical staff; and with humanistic care, it improves the quality of life for patients. It has redefined the equipment standards for modern medical care.
Technical Patameter |
||||||
Item |
Date |
Item |
Date |
|||
Model No |

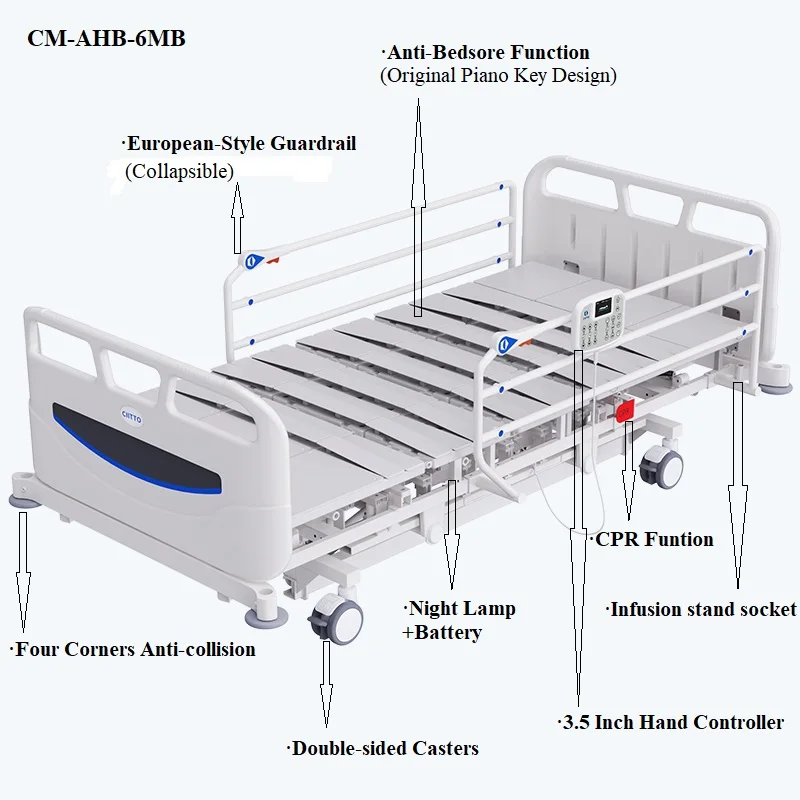

CM-AHB-6MB |
|||||

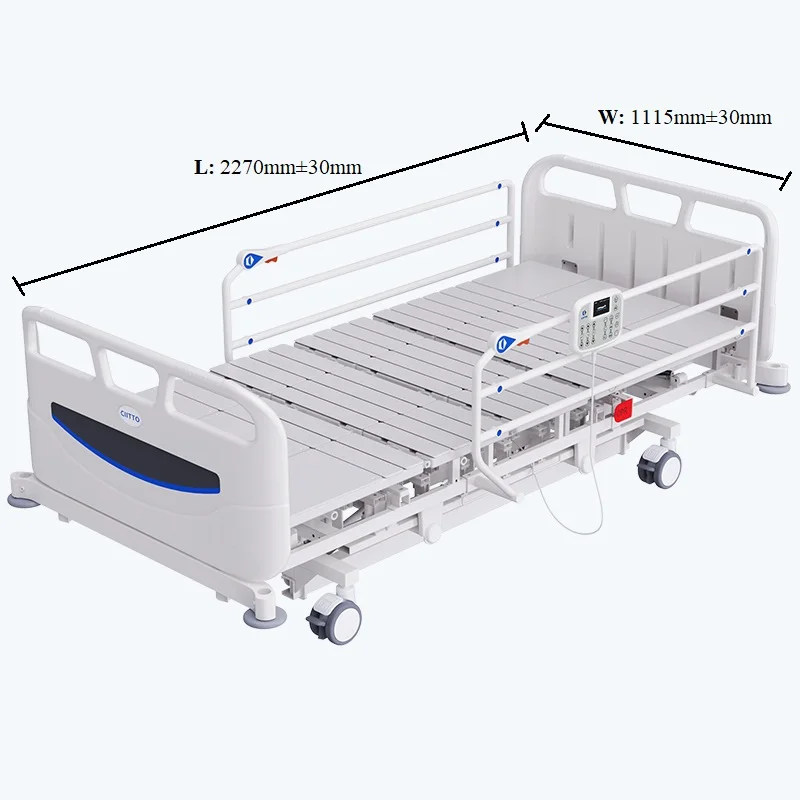

Bed body size mm （long x width, tolerance±30mm) |
2270*1115mm |
Turn over folding angle range （tolerance±3°) |
NO |
|||
Bed surface size mm （long x width, tolerance±30mm) |
1995*930mm |
The maximum angle of trendelenburg and reverse trendelenburg |
≥12° |
|||
Minimum height of bed surface mm （not including mattress, tolerance±30mm) |
475mm |
Platform extension function （tolerance±3mm) |
NO |
|||
Bed surface lifting stroke range mm (tolerance±30mm) |
220mm |
UI display |
NO |
|||
Backboard folding angle range （tolerance±3°) |
0°～70° |
Guardrail type |
European style |
|||
Folding angle range of thigh plate （tolerance±3°) |
0°～32° |
Encounting power-off |
Battery |
|||
Folding angle range of calf plate （tolerance±3°) |
0°～12° |
Safe load |
200KG |
|||
